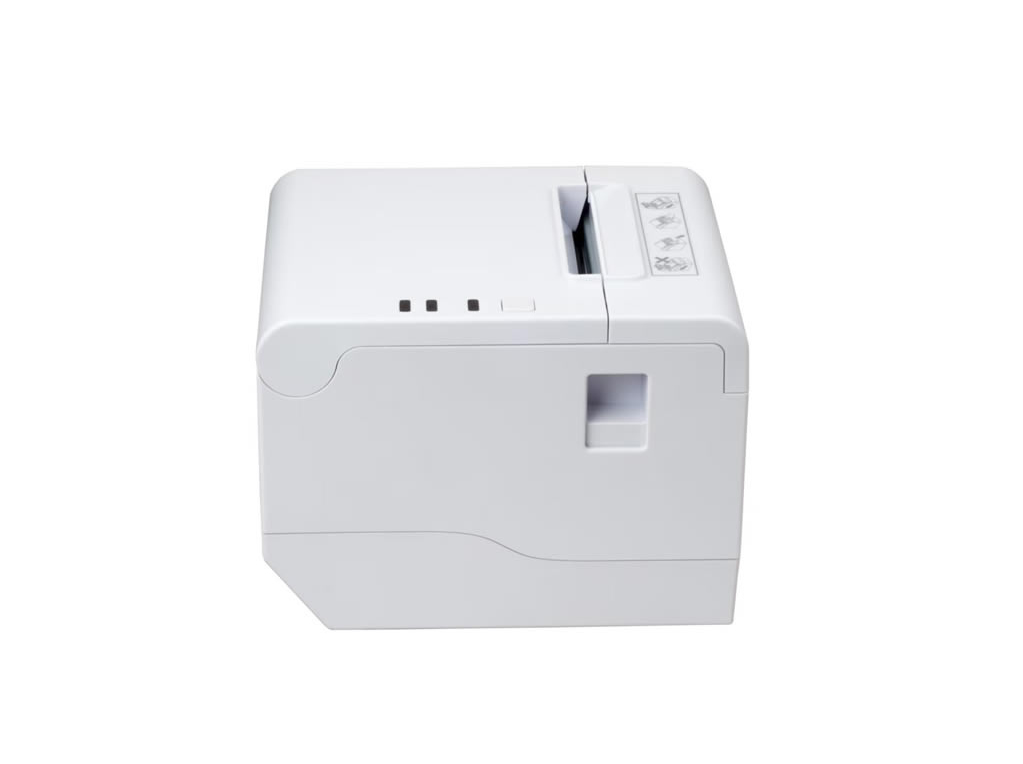

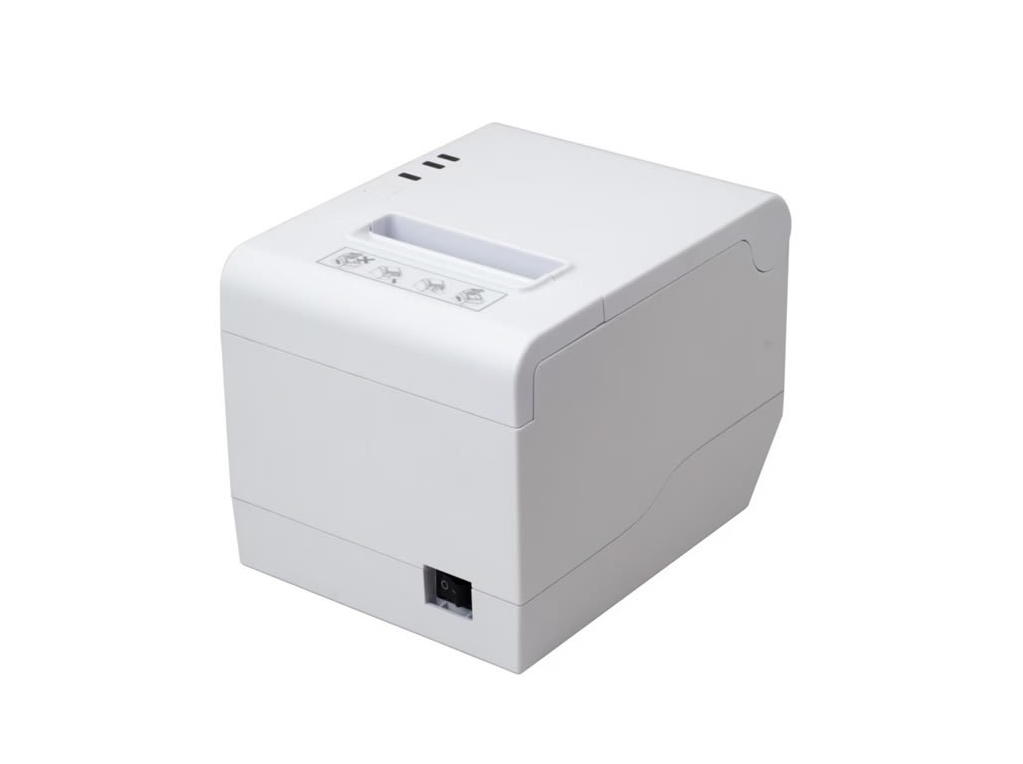

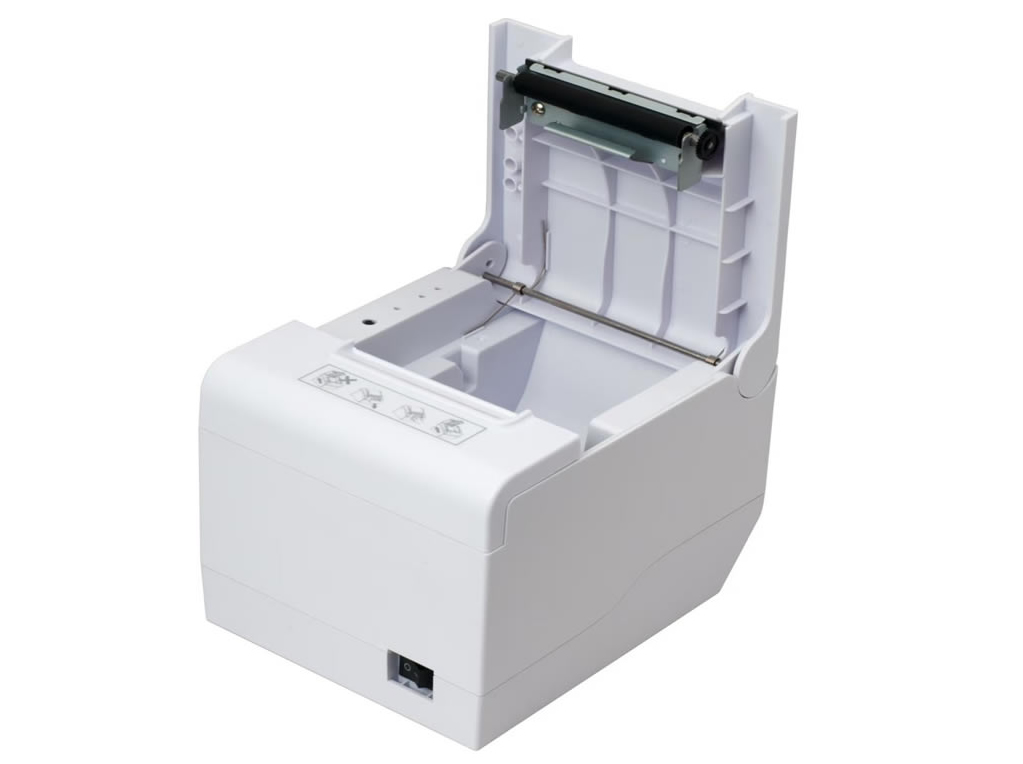

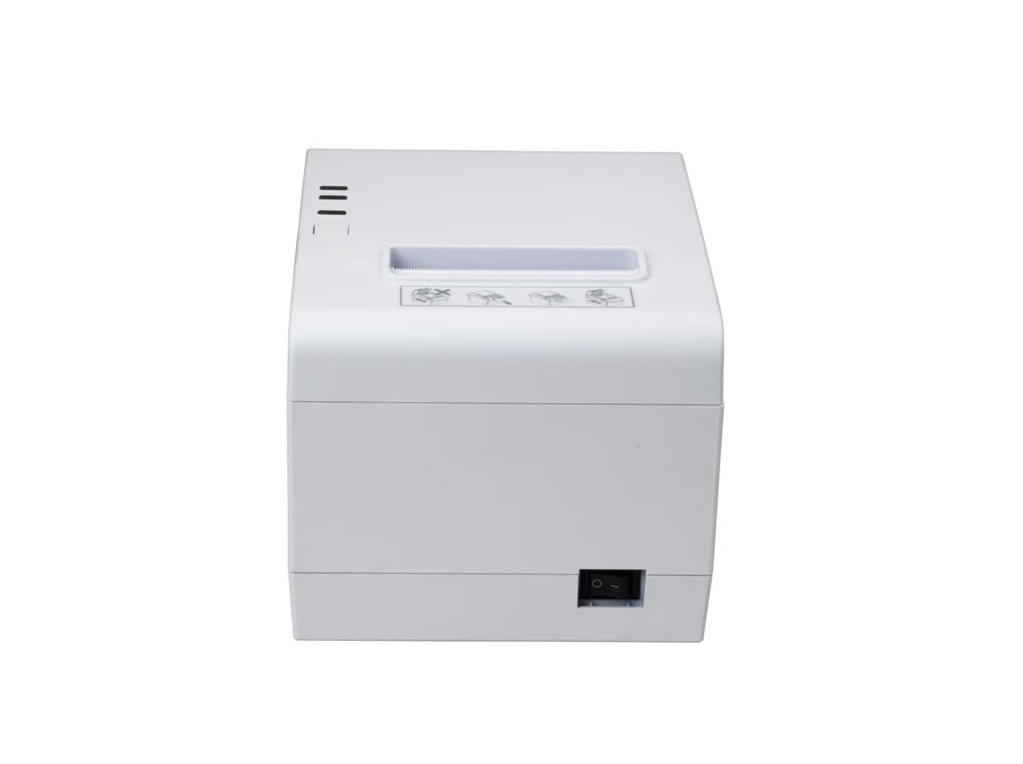

| Model | POS-8380 | ||||
| Printing | Print Method | Direct Thermal | |||
| Print Speed | 260mm/s | ||||
| Resolution | 576dots/line or 572dots/line | ||||
| Printing Width | 72mm | ||||
| Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||||
| Interface | USB+LAN+Rs232 | ||||
| Kitchen function | Power,Paper,Erro | Support | |||
| LED light with beeper | Without | ||||
| Hanging device | Equipped | ||||
| Memory | Input buffer | 256kbyte | |||
| NV Flash | 256kbytes | ||||
| Fonts | Font A | 12x24 | |||
| Font B | 9x17 | ||||
| Fonts | Chinese | GB18030,BIG5 24x24dots | |||
| Japanese/Korea | Support | ||||
| User-defined | Support | ||||
| Barcode | 1D | UPC-A/UPC-E/JAN13（EAN13）/JAN8 （EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |||
| 2D | QR CODE | ||||
| Detection | Sensors | Paper out, cover open, cutter jam,paper jam | |||
| Power Supply | Input | AC 100V-240V 50/60HZ | |||
| Output | DC 24V/2.5A | ||||
| Paper | Paper Type | Thermal Receipt Paper | |||
| Paper Width(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||||
| Paper Thickness | 0.06~0.08mm | ||||
| Roll Dia | Max. Ø 83 mm | ||||
| Paper Load | Easy paper loading | ||||
| Paper Cut | Manual tear & Auto-cutter | ||||
| Physical Characteristics | Working Condition | 0°C~45°C, 10%~80%RH | |||
| Storage Condition | -10°C-60°C,10%~90%RH | ||||
| Dimensions | 191(D)x146(W)x12.9(H)mm | ||||
| Net weight | 0.98kg | Gross weight | 1.91kg | ||
| Reliability | Printing head | 150KM | |||
| cutter | 1.5million | ||||
| Accessories | data cable,power code,paper roller,CD,manual,paper separator(option) | ||||
| Packing | Individual box | Dimension 26.6*16.4*16cm(LXWXH） | 1unit/carton | ||
| Master carton | Dimension 57.5*37*53.5cm (LXWXH） | 12units/carton | |||
| OS | Emulation | ESC/POS | |||
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS | ||||
| SDK | Android, IOS | ||||
